Complies with 802.11n, 802.11g and 802.11b standards.
Provides further coverage, less dead spot and higher throughput
(up to 300Mbps) with MIMO technology.
Supports WMM, WMM-PS and WMM-SA (IEEE 802.11e QoS standards).
Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x) and
WPA2 (AES with IEEE 802.1x) encryption.
Supports WPS configuration.

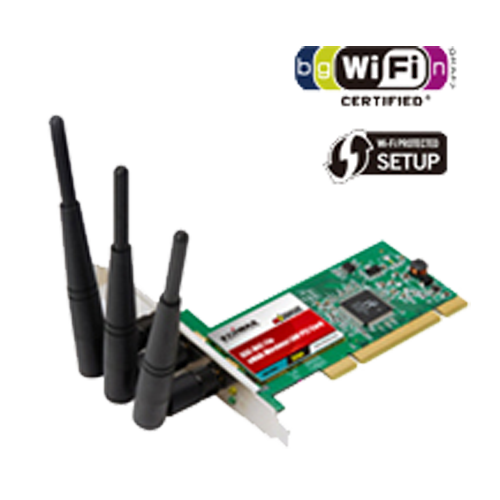

Provides 3 detachable antennas.
Supports operating system: Windows 2000/XP/XP64/Vista /Mac OS 10.x
HARDWARE INTERFACE |
STANDARD |
FREQUENCY BAND |
- 32-bit PCI
- 3 x 3dBi detachable Antennas
|
|
- 2.4000~2.4835GHz (Industrial Scientific Medical Band)
|
DATA RATE |
INSTALLATION |
LED |
- 11b: 1/2/5.5/11Mbps
- 11g: 6/9/12/24/36/48/54Mbps
- 11n (20MHz): MCS0-15, 32 with Half Guard Interval Support (up to 144Mbps)
- 11n (40MHz): MCS0-15, 32 with Half Guard Interval Support (up to 300Mbps)
|
- Multi-language EZmax Setup Wizard
|
|
SECURITY |
DIMENSION |
HUMIDITY & TEMPERATURE |
- WEP 64/128, WPA, WPA2
- Cisco CCX Support
- WPS configuration
|
|
- Max. 95% (Non Condensing)
- 32~131°F (0~55°C)
|
SYSTEM REQUIREMENTS |
OUTPUT POWER |
CERTIFICATIONS |
- Windows 2000/XP/XP 64/Vista/Mac OS 10.X
|
|
|
|
|
